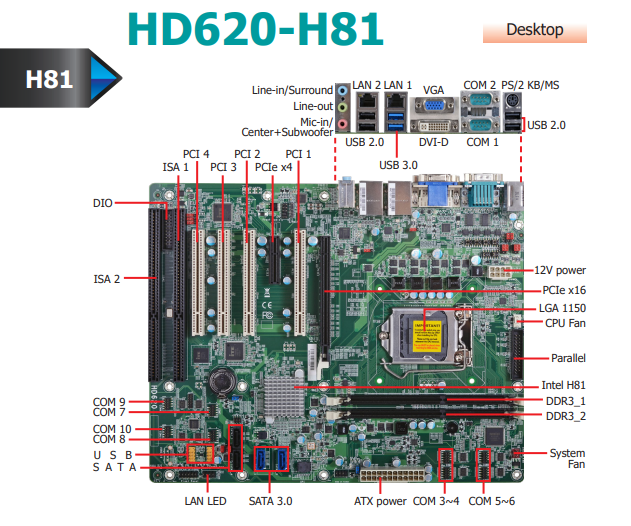

DFI HD620-H81工控主板


第4代Intel? Core?, Intel? H81
雙通道 DDR3 1600MHz DIMM 至 16GB
1 VGA, 1 DVI-I
多重擴充: 1 PCIe x16, 1 PCIe x4, 4 PCI, 2 ISA, 4 SATA
豐富I/O: 2 Intel 網口, 10 USB, 10 串口
7年CPU長期支持至Q3' 19 (Based on Intel IOTG Roadmap)

系統

處理器

4th Generation Intel? Core? processors, LGA 1150 socket
Intel? Core? i7-4790S Processor, 8M Cache, 4.0 GHz, 65W
Intel? Core? i7-4770S Processor, 8M Cache, 3.9 GHz, 65W
Intel? Core? i7-4770TE Processor, 8M Cache, 3.3 GHz, 45W
Intel? Core? i5-4590S Processor, 6M Cache, 3.7 GHz, 65W
Intel? Core? i5-4590T Processor, 6M Cache, 3.0 GHz, 35W
Intel? Core? i5-4570S Processor, 6M Cache, 3.6 GHz, 65W
Intel? Core? i5-4570TE Processor, 4M Cache, 3.3 GHz, 35W
Intel? Core? i3-4360 Processor, 4M Cache, 3.7 GHz, 54W
Intel? Core? i3-4350T Processor, 4M Cache, 3.1 GHz, 35W
Intel? Core? i3-4340TE Processor, 4M Cache, 2.6 GHz, 35W
Intel? Core? i3-4330 Processor, 4M Cache, 3.5 GHz, 54W
Intel? Core? i3-4330TE Processor, 4M Cache, 2.4 GHz, 35W
Intel? Pentium? G3420 Processor, 3M Cache, 3.2 GHz, 53W
Intel? Pentium? G3320TE Processor, 3M Cache, 2.3 GHz, 35W
Intel? Celeron? G1820 Processor, 2M Cache, 2.7 GHz, 53W
Intel? Celeron? G1820TE Processor, 2M Cache, 2.2 GHz, 35W

芯片組

Intel? H81 Chipset

內存

Two 240-pin DIMM up to 16GB Dual Channel DDR3 1333/1600MHz

BIOS

AMI SPI 64Mbit

顯示

控制器

Intel? HD Graphics

特性

OpenGL 4.0, DirectX 11.1

顯示器

1 x DVI-D
1 x VGA
DVI-D/VGA: resolution up to 1920x1200 @ 60Hz

擴充

界面

1 x PCIe x16 (Gen 2)
1 x PCIe x4 (Gen 2)
4 x PCI
2 x ISA

音訊

音訊編譯碼器

Realtek ALC886

以太網路

控制器

1 x Intel? 82574 PCIe (10/100/1000Mbps)
1 x Intel? I217LM (10/100/1000Mbps)

背板輸入/輸出

以太網絡

2 x GbE (RJ-45)

串口

2 x RS-232/422/485 (RS-232 w/ power) (DB-9)

USB

2 x USB 3.0
4 x USB 2.0

PS/2

1 x PS/2 (mini-DIN-6)

顯示

1 x VGA
1 x DVI-D

音源

1 x Line-out
1 x Mic-in
1 x Line-in

內部輸入/輸出

串行端口

8 x RS-232 (2.0mm pitch)

USB

4 x USB 2.0 or 1 Vertical USB 2.0*

音效

1 x Audio (Line-out/Mic-in)
1 x S/PDIF

SATA

2 x SATA 3.0 (up to 6Gb/s)
2 x SATA 2.0 (up to 3Gb/s)

DIO

1 x 8-bit DIO

監視定時器

看門狗定時器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信賴平臺模塊

Available Upon Request

電源

類型

ATX

端口

8-pin ATX 12V power
24-pin ATX power

耗能

Idle: i7-4770S 65W: 12V @ 1.1922A (14.3064W), 5V @ 0.8850A (4.425W), 3.3V @ 0.8183A (2.70039W)
Max: i7-4770S 65W: 12V @ 4.2839A (51.4068W), 5V @ 1.4762A (7.381W), 3.3V @ 0.9035A (2.98155W)

RTC 電池

CR2032 Coin Cell

支持操作系統

Windows XP Professional x86 & SP3 (32-bit) (limited function)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Windows 10 will be available upon request. Please contact DFI for more information

環境指標

溫度

Operating: 0 to 60°C
Storage: -20 to 85°C

濕度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

435,517 hrs @ 25°C; 253,313 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled

機械結構

尺寸

ATX form factor 305mm (12") x 244mm (9.6")

高度

PCB: 1.6mm
Top Side: 38.5mm
Bottom Side: 4.4mm
