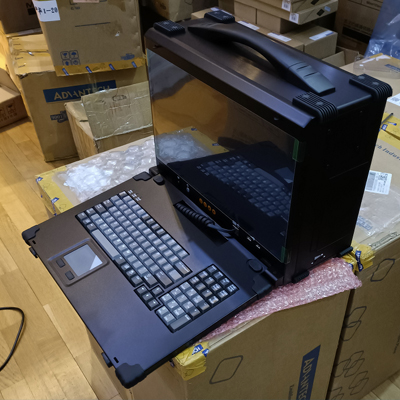

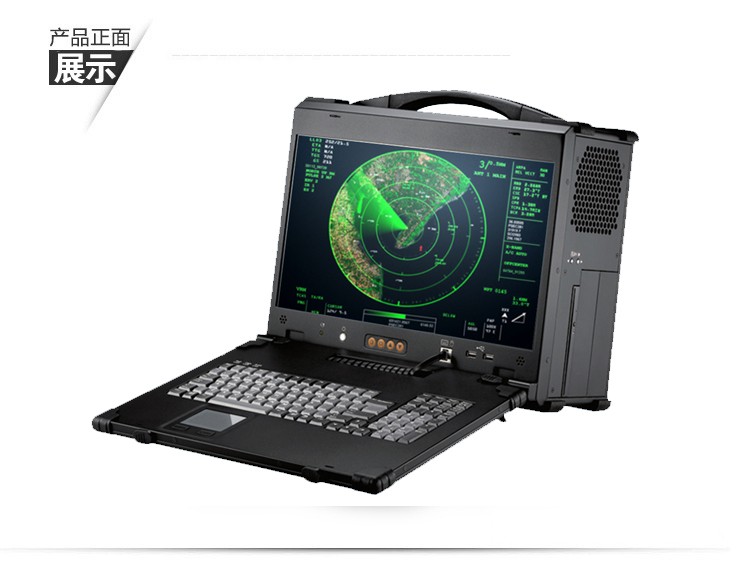

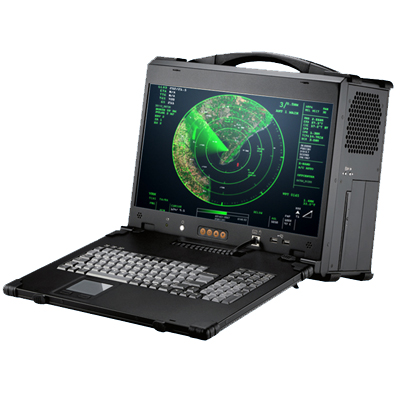

便攜工控機ARP-840-17W-DVI
型號 | ARP-840-17W-DVI | ARP-840-17W-DP |
液晶屏大小 | 17.3" FHD LCD display, | 17.3" FHD LCD display, |
最大分辨率 | 1920x1080 | 1920x1080 |
適用主板 | Micro-ATX工業母板 | Micro-ATX工業母板 |
顯示接口 | DVI顯示接口 | DP顯示接口 |
最大擴充槽數 | Offer 4 full length expansion slots (338.5mm) | Offer 4 full length expansion slots (338.5mm) |
電源 | 1U電源 600W | 1U電源 600W |
驅動空間 | 2x 5.25", 1x 2.5" | 2x 5.25", 1x 2.5" |
超薄光驅 | 1個筆記本光驅位置 | 1個筆記本光驅位置 |
鍵盤/鼠標 | Industrial keyboard with touchpad, Operating life of keys: 8 million cycles Option KB: CH, FR, GR, KR, RU, US | Industrial keyboard with touchpad, Operating life of keys: 8 million cycles Option KB: CH, FR, GR, KR, RU, US |
揚聲器 | Built-in amplified 2x 3W speakers | Built-in amplified 2x 3W speakers |
尺寸（寬*深*高） | 417Wx 350Hx 186D mm | 417Wx 350Hx 186D mm |
重量 | 8 kgs | 8 kgs |
工作溫度 | 0°C~50°C | 0°C~50°C |
儲存溫度 | -20°C~60°C | -20°C~60°C |
Model Description
ARP-840-17W-DVI 17.3" LCD, 1920x 1080, 4 slots, 2x 5.25", 1x 2.5" hidden, DVI, Carrying case
ARP-840-17W-DP 17.3" LCD, 1920x 1080, 4 slots, 2x 5.25", 1x 2.5" hidden, DP, Carrying

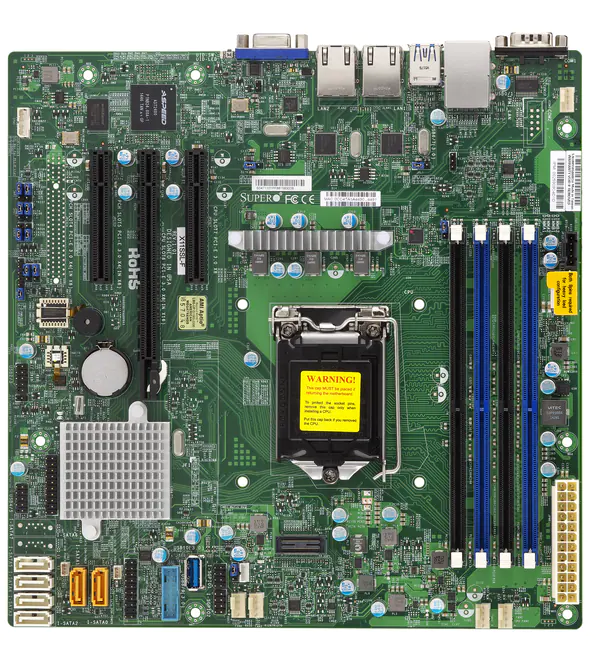

Single socket H4 (LGA 1151) supports Intel? Xeon? processor E3-1200 v6/v5, Intel? 7th/6th Gen. Core? i3 series,
Intel? Celeron? and Intel? Pentium?
Intel? C232 chipset
Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
Expansion slots:
1 PCIe 3.0 x8 (in x16),
1 PCIe 3.0 x8,
1 PCIe 3.0 x4 (in x8)
Dual GbE LAN with Intel? i210-AT
6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
Integrated IPMI 2.0 and KVM with Dedicated LAN
2 SuperDOM with built-in power
5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
I/O: 1 VGA, 1 COM, TPM header
