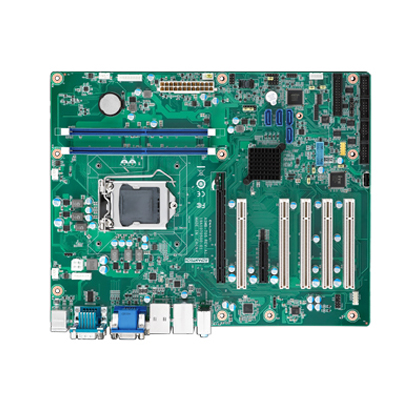

AIMB-705

LGA1151 6th Generation Intel? Core? i7/i5/i3/Pentium ATX with DVI/VGA, DDR4, SATA III, USB 3.0 & 6 COMs

• Intel第6代Core i7/i5/i3/pentium 處理器

• 雙通道(Non-ECC) DDR4 1866/2133，高達(dá)32GB

• 支持VGA與DVI顯示

• 支持SATA3.0, USB3.0, 雙GbEs

• 支持5個RS-232和1個RS-232/422/485串聯(lián)端口

• 1個PCIe x16 (Gen3)和1個PCIe x4 (Gen2),和5個PCI擴展槽

規(guī)格

Part Number

相關(guān)訊息

AIMB-705G2-00A1E

AIMB-705VG-00A1E

Form Factor

Form Factor

ATX

ATX

Processor System

CPU

Frequency

L3 Cache

BIOS

Chipset

Integrated Graphics

Socket

Intel 6th Core i3/i5/i7 (LGA1151)

Intel 6th Core i3/i5/i7 (LGA1151)

Up to 3.7 GHz

Up to 3.7 GHz

8 MB/6 MB/4 MB/3 MB/2 MB

8 MB/6 MB/4 MB/3 MB/2 MB

AMI SPI 128 Mbit

AMI SPI 128 Mbit

Intel H110

Intel H110

Yes

Yes

LGA1150

LGA1150

Memory

Technology

Capacity

Socket

Dual Channel DDR4 1866/2133 MHz

Dual Channel DDR4 1866/2133 MHz

Up to 32 GB (16 GB Per DIMM)

Up to 32 GB (16 GB Per DIMM)

2 x 288-pin DIMM

2 x 288-pin DIMM

Display

Controller

Graphic Memory

Multiple Display

Display Interface

Intel HQ Graphics Integrated

Intel HQ Graphics Integrated

Share system memory up to 1 GB with 2 GB and above memory installed

Share system memory up to 1 GB with 2 GB and above memory installed

Dual

-

VGA: Up to 1920 x 1200, DVI-D: Up to 1920 x 1200

VGA: Up to 1920 x 1200

Expansion Interface

PCI Express x 16

PCI Express x 4

PCI

LPC

1

1

1

1

5

5

1

1

Ethernet

Controller

Connector

Interface

LAN1: Intel I219-V, LAN2: Intel I211-AT

LAN1: Intel I219-V

2 x RJ-45

1 x RJ-45

10/100/1000 Mbps

10/100/1000 Mbps

WatchDog Timer

Output

Interval

System Reset

System Reset

Programmable 1~255 sec

Programmable 1~255 sec

I/O

COM Port

GPIO

LPT

PS/2 Keyboard/Mouse

SATA

SPDIF

System Fan

USB2.0

USB3.0

4 (3 x RS-232, 1 x RS-232/422/485)

-

8-bit

8-bit

1

1

1

1

4 x SATA III

4 x SATA III

1

1

2

2

3

3

2

2

Rear I/O Interface

Display

USB3.0

USB2.0

COM

PS/2

Audio

DVI

Ethernet

VGA

2

1

2

2

2

2

2 (RS-232)

2 (RS-232)

2 (1 x keyboard and 1 x mouse)

2 (1 x keyboard and 1 x mouse)

2 (Mic-in, Line-out)

2 (Mic-in, Line-out)

1

-

2

1

1

1

Physical Characteristics

Dimensions (LxW)

304.8 x 244 mm (12" x 9.6")

304.8 x 244 mm (12" x 9.6")

Certification

EMC

CE, FCC

CE, FCC
