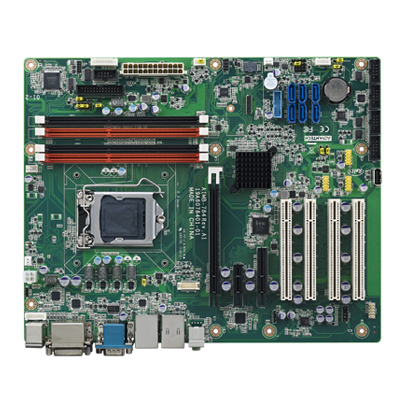

AIMB-784

LGA 1150 第四代Intel?Core?i7/i5/i3/Pentium ATX,帶DVI/VGA,DDR3，SATA3

• 支持Intel 第四代Core i7/i5/i3處理器

• 支持Intel?Core? i7/i5/i3 處理器，支持Q87芯片組

• 軟件API:SMBus/ H/W 監控/看門狗

• 4個DIMM 插槽，最大支持32GB DDR3 1333/1600

• 支持雙顯示VGA/2 DVI-D 和雙GbE LAN

• 支持SATA RAID 0,1,5,10,AMT9.0,USB 3.0

• 軟件API:SUBus/H/W 監控/看門狗

規格

Part Number

相關訊息

AIMB-784G2-00A1E

Form Factor

Form Factor

ATX

Processor System

CPU

Frequency

L3 Cache

BIOS

Chipset

Integrated Graphics

Socket

Intel 4th Core i3/i5/i7 (LGA1150)

Up to 3.7 GHz

8 MB/6 MB/4 MB/3 MB/

AMI SPI 128 Mbit

Intel Q87

Yes

LGA1150

Memory

Technology

Capacity

Socket

Dual Channel DDR3 1333/1600 MHz

Up to 32 GB (8 GB per DIMM)

4 x 240-pin DIMM

Display

Controller

Graphic Memory

Multiple Display

Display Interface

Intel HQ Graphics Integrated

Share system memory up to 1 GB with 2 GB and above memory installed

Triple

VGA: Up to 1920 x 1200 , DVI-D: Up to 1920 x 1200

Expansion Interface

PCI Express x 16

PCI Express x 4

PCI Express x 1

PCI

LPC

1

1

1

4

1

Ethernet

Controller

Connector

Interface

LAN1: Intel I217LM, LAN2: Intel I211AT

2 x RJ-45

10/100/1000 Mbps

WatchDog Timer

Output

Interval

System Reset

Programmable 1~255 sec

I/O

COM Port

GPIO

LPT

PS/2 Keyboard/Mouse

SATA

SPDIF

System Fan

USB2.0

USB3.0

5 (4 x RS-232, 1 x RS-232/422/485)

8-bit

1

1

6 x SATA III (RAID 0, 1, 5, 10)

1

2

7

2

Rear I/O Interface

Display

USB3.0

USB2.0

COM

PS/2

Audio

DVI

Ethernet

VGA

3

2

2

1 (RS-232)

2 (1 x keyboard and 1 x mouse)

2 (Mic-in, Line-out)

2

2

1

Physical Characteristics

Dimensions (LxW)

304.8 x 244 mm (12" x 9.6")

Certification

EMC

CE, FCC
