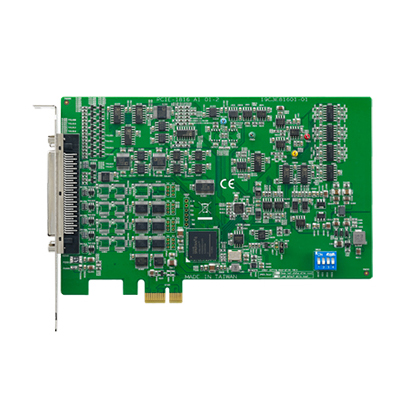

研華PCIE-1816 1MS/s,16位,16通道PCI Express總線多功能卡

PCIE-1816/1816H is a 16-ch (up to 5 MS/s) multifunction DAQ card with integrated digital I/O, analog I/O, and counter functions. PCIE-1816/1816H also features analog and digital triggering support, 2-ch 16-bit analog outputs with waveform generation capability, 24-ch programmable digital I/O lines, and two 32-bit general purpose timer/counters.

?16路模擬輸入，高達1 MS / s，16位分辨率
?2路模擬量輸出，高達3 MS / s，16位分辨率
?模擬量輸入輸出支持模擬和數字觸發器
?模擬量輸出支持波形生成
?24路可編程數字I/ O通道
?2個32位可編程計數器/定時器
?板載FIFO存儲器(4k采樣)
?支持微軟Windows 8（僅桌面控制模式）/7/XP
