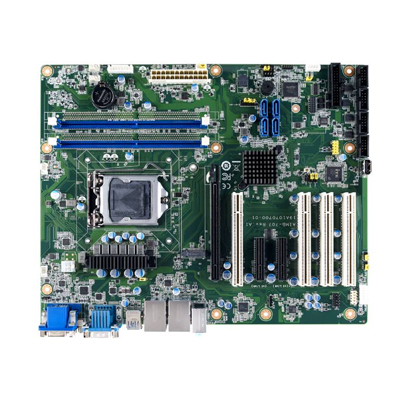

AIMB-707

LGA1200 10th Generation Intel? Core? i9/i7/i5/i3 & Pentium?/Celeron? ATX with DVI/VGA, DDR4, USB 3.2, M.2, 6 COMsIntel? 10th generation Core? i9/i7/i5/i3 & Pentium?/Celeron? processor with H420E chipset

• Dual channel (Non-ECC) DDR4 2400/2666/2933 up to 64 GB

• Support VGA and DVI display

• M.2, SATA 3.0, USB 3.2, dual GbEs

• 5 RS-232 and 1 RS-232/422/485 serial ports

• 1 PCIe x16 (Gen 3) and 2 PCIe x4 (x1 Gen 3 link), and 4 PCI expansion slots

• Note 1: Legacy platform is not supported.

• Note 2: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.

• Note 3: Intel? Platform Trust Technology (Intel? PTT) ready for Windows 11.

•
