• 第六代/第七代Intel? Core?及Intel? Q170

• 支持 DDR4 SODIMM 高達32GB

• 三個獨立顯示: 1 VGA + 1 DVI/HDMI + 1 HDMI/DP

• 支持 4 PoE G網口 及1個擴充插槽

• 2 Mini PCIe slots 支持 mSATA 及 Wi-Fi 模塊

• 15年CPU長期支持至Q4' 30 (Based on Intel IOTG Roadmap)

系統

處理器

6th/7th Generation Intel? Core? Processors, LGA 1151 Socket
Intel? Core? i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
Intel? Core? i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
Intel? Core? i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
Intel? Core? i7-7700T, Quad Core, 8M Cache, 2.9GHz (3.8GHz), 35W
Intel? Core? i5-7500T, Quad Core, 6M Cache, 2.7GHz (3.5GHz), 35W
Intel? Core? i3-7101TE, Dual Core, 3M Cache, 3.4GHz, 35W

芯片組

Intel? Q170 Chipset

內存

Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz

BIOS

Insyde SPI 128Mbit

顯示

控制器

Intel? HD Gen 9 Graphics

特性

OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

顯示器

1 x VGA
1 x DVI (DVI-D signal)/HDMI (HDMI available upon request)
1 x HDMI/DP (DP available upon request)
1 x HDMI/DP (DP available upon request)
VGA: resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz

三重顯示

VGA + DVI (DVI-D signal) + HDMI
VGA + DVI (DVI-D signal) + DP
VGA + 2 HDMI
VGA + HDMI + DP

儲存

內插

2 x 2.5" SATA 3.0 Drive Bay (RAID 0/1)

擴充

界面

1 x Full-size Mini PCIe (PCIe/USB)
1 x Half-size Mini PCIe (USB/mSATA)
1 x PCI (EC510-SD)
1 x PCIe x16 (EC511-SD)

以太網路

控制器

1 x Intel? I211AT PCIe (10/100/1000Mbps)
4 x Intel? I210IT PCIe (10/100/1000Mbps)
1 x Intel? I219V with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

LED

指示燈

1 x Power LED
1 x HDD LED

背板輸入/輸出

以太網絡

6 x GbE (RJ-45) or
2 x GbE (RJ-45) + 4 x PoE GbE (RJ-45) (supports IEEE 802.3af, 15.4W per port)

串口

2 x RS-232/422/485 (DB-9) (RS-232 with power)
1 x RS-232/422/485 (DB-9)

USB

4 x USB 3.0 (type A)

DIO

1 x 16-bit DIO

顯示

1 x VGA
1 x DVI (DVI-D signal)/HDMI (HDMI available upon request)
1 x HDMI/DP (DP available upon request)

音源

1 x Line-out
1 x Mic-in

按鍵

1 x Power Button
1 x Reset Button

監視定時器

看門狗定時器

System Reset, Programmable via Software from 1 to 255 Seconds

電源

類型

Wide Range 9~36V

端口

3-pole Terminal Block

支持操作系統

支持操作系統

Windows 7 (32/64-bit)
Windows 10
Windows 8.1 (64-bit)

環境指標

運作溫度

0 to 50°C (SSD or mSATA-mini, with 0.7m/s air flow)

儲存溫度

-20 to 85°C

相對濕度

5 to 95% RH (non-condensing)

機械結構

結構

Aluminum + SGCC

安裝方式

Wall Mount

尺寸 (寬 x 高 x 深)

235mm x 102.5mm x 222mm

重量

4.1 kg

安規認證

沖擊測試

Half sine wave 3G, 11ms, 3 shock per axis

抗振動測試

IEC68-2-64

認證

CE, FCC Class A, RoHS

裝箱單

裝箱單

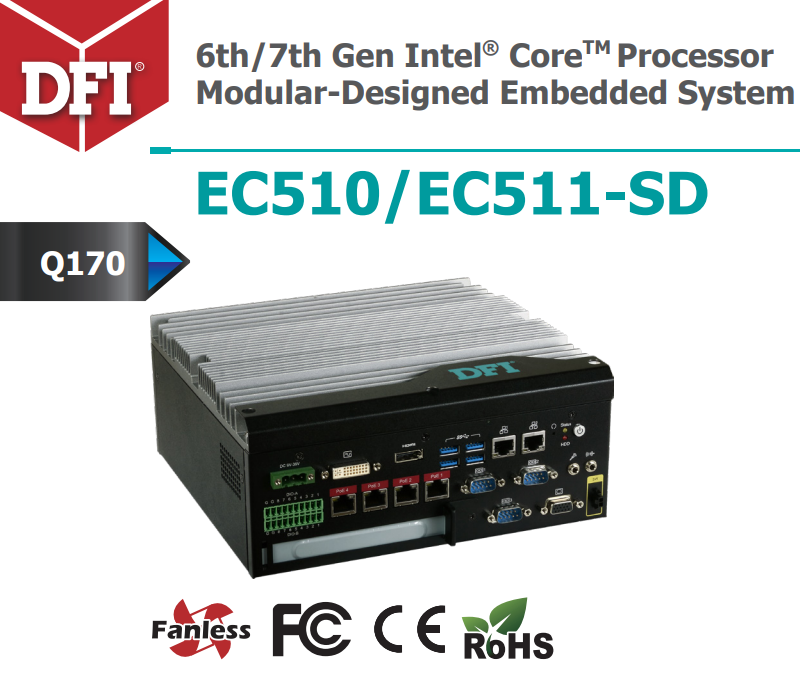

1 EC510/EC511-SD system unit
1 Quick Installation Guide
