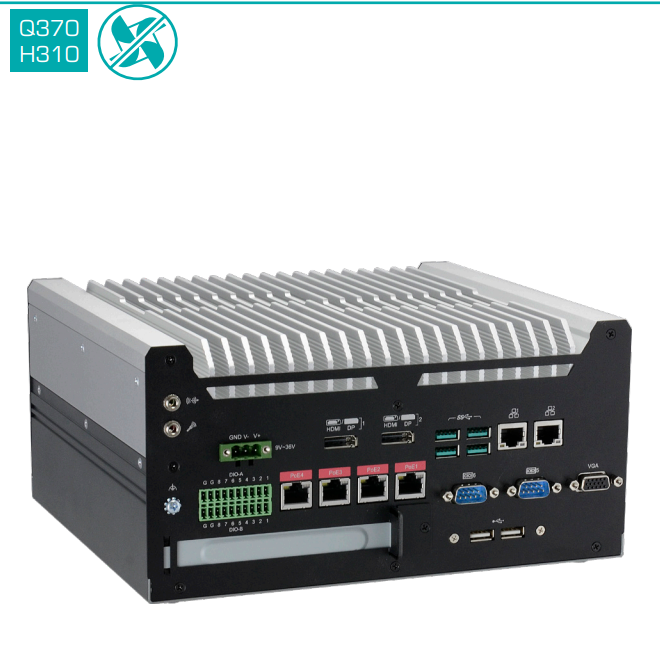

• 8th/9th Generation Intel? Core? with Intel? Q370/H310

• Supports DDR4 SODIMM up to 64GB

• Three independent displays: 1 VGA + 2 HDMI/DP++ (auto detection)

• Support 4 PoE (EC51x-CS6G86E-Q)

• 1 PCIe and 3 M.2 slots support NVMe

• Support 5G Communication

• Operating Temperature: -20 to 60°C

• 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

系統

處理器

8th/9th Generation Intel? Core? Processors, LGA 1151
Intel? Core? i7-9700TE , Octa Cores, 12M Cache, up to 3.8 GHz, 35W
Intel? Core? i5-9500TE , Hexa Cores, 9M Cache, up to 3.6 GHz), 35W
Intel? Core? i3-9100TE, Quad Cores, 6M Cache, up to 3.2 GHz, 35W
Intel? Core? i7-8700T Processor, Hexa Core, 12M Cache, 2.4GHz (4GHz), 35W
Intel? Core? i5-8500T Processor, Hexa Core, 9M Cache, 2.1GHz (3.5GHz), 35W
Intel? Core? i3-8100T Processor, Quad Core, 6M Cache, 3.1GHz, 35W
Intel? Pentium? Processor G5400T, Dual Core, 4M Cache, 3.1GHz, 35W
Intel? Celeron? Processor G4900T, Dual Core, 2M Cache, 3.1GHz, 35W

芯片組

Intel? Q370/H310 Chipset

內存

Two 260-pin DDR4 2400/2666MHz SODIMM up to 64GB

BIOS

AMI SPI 128Mbit

顯示

控制器

Intel? HD Graphics

特性

OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8

顯示器

-EC51x-CS6G86E-Q/EC51x-CS6G86-Q
1 x VGA
2 x HDMI/DP++ (auto detection)
-EC51x-CS98A1-H
1 x VGA
1 x HDMI/DP++ (auto detection)
VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz

雙重顯示/三重顯示

-EC51x-CS6G86E-Q/EC51x-CS6G86-Q
VGA + 2 x HDMI/DP++ (auto detection)
-EC51x-CS98A1-H
VGA + 1 x HDMI/DP++ (auto detection)

儲存

界面

2 x 2.5" SATA 3.0 Drive Bay
support RAID 0/1 (EC51x-CS6G86E-Q/EC51x-CS6G86-Q)

擴充

界面

-EC510-CS6G86E-Q/EC510-CS6G86-Q
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (PCIe x4 NVMe/SATA)
1 x M.2 3042/3052 B key (PCIe/USB 3.0)
1 x PCI slot
-EC510-CS98A1-H
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (SATA)
1 x M.2 3042/3052 B key (PCIe)
1 x PCI slot
-EC511-CS6G86E-Q/EC511-CS6G86-Q
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (PCIe x4 NVMe/SATA)
1 x M.2 3042/3052 B key (PCIe/USB 3.0)
1 x PCIe x16 slot
-EC511-CS98A1-H
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (SATA)
1 x M.2 3042/3052 B key (PCIe)
1 x PCIe x16 slot

音訊

音訊編譯碼器

ALC888

以太網路

控制器

-EC51x-CS6G86E-Q/EC51x-CS6G86-Q
1 x Intel? I210AT PCIe (10/100/1000Mbps)
1 x Intel? I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
-EC51x-CS98A1-H
1 x Intel? I210AT PCIe (10/100/1000Mbps)
1 x Intel? I219V with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

界面

RJ-45

LED

指示燈

1 x Status LED
1 x HDD LED

前板輸入/輸出

串口

4 x RS-232/422/485 (DB-9)

USB

2 x USB 2.0 (type A)

按鍵

1 x Power Button
1 x Reset Button

天線

4 x Antenna Hole (WiFi)

背板輸入/輸出

PoE

-EC51x-CS6G86E-Q
4 x PoE (RJ-45)

以太網絡

-EC51x-CS6G86E-Q
2 x GbE (RJ-45)
-EC51x-CS6G86-Q
6 x GbE (RJ-45)
-EC51x-CS98A1-H
2 x GbE (RJ-45)

串口

-EC51x-CS6G86E-Q/EC51x-CS6G86-Q
2 x RS232
-EC51x-CS98A1-H
3 x RS232/422/485
2 x RS232

USB

-EC51x-CS6G86E-Q/EC51x-CS6G86-Q
4 x USB 3.1(Gen.2)
2 x USB2.0
-EC51x-CS98A1-H
4 x USB 3.1(Gen.2)
4 x USB 3.1(Gen.1)

DIO

-EC51x-CS6G86E-Q/EC51x-CS6G86-Q
16 bits DIO
-EC51x-CS98A1-H
8 bits DIO

顯示

-EC51x-CS6G86E-Q/EC51x-CS6G86-Q
VGA + 2 x HDMI/DP++ (auto detection)
-EC51x-CS6G86E-Q/EC51x-CS6G86-Q
VGA + 1 x HDMI/DP++ (auto detection)

音源

1 x Line-out
1 x Mic-in

監視定時器

看門狗定時器

System reset, programmable via software from 1 to 255 seconds

安全性

信賴平臺模塊

TPM 2.0

電源

類型

Wide range 9~36V

端口

3-pole terminal block
2-pin power extension switch connector

支持操作系統

微軟

Windows 10 IoT Enterprise 64 Bit

Linux

Linux (available upon request)

環境指標

運作溫度

-20 to 60°C (2.5" SSD or M.2 SSD)

儲存溫度

-20 to 85°C

相對濕度

5 to 95% RH (non-condensing)

機械結構

結構

Metal + Aluminum

安裝方式

Wall mount

尺寸 (寬 x 高 x 深)

255.3 x 124.6 x 224mm

重量

5.1 kg

安規認證

沖擊測試

Half sine wave 3G, 11ms, 3 shock per axis

抗振動測試

IEC68-2-64

認證

CE, FCC Class A

裝箱單

裝箱單

1 x EC510/EC511-CS system unit
1 x M.2 slot screws
1 x terminal block 3-pole for DC input
1 x cable with 2 wire stripped and tinned to DC jack
